IoT RF NODE Zhaga
Technical specifications
- frequency band 868 MHz
- wireless communication protocol 802.15.4g – 6LoWPAN
- data encryption AES – 128bit
- sensors GPS, GLONASS, BeiDou, and Galileo
- supports DALI-2 and D4i
- power supply 24 V
- power consumption approximately 0.5 W
- programming via NFC
- connection Zhaga connector
- outdoor operating temperature range from -40 to +70 °C

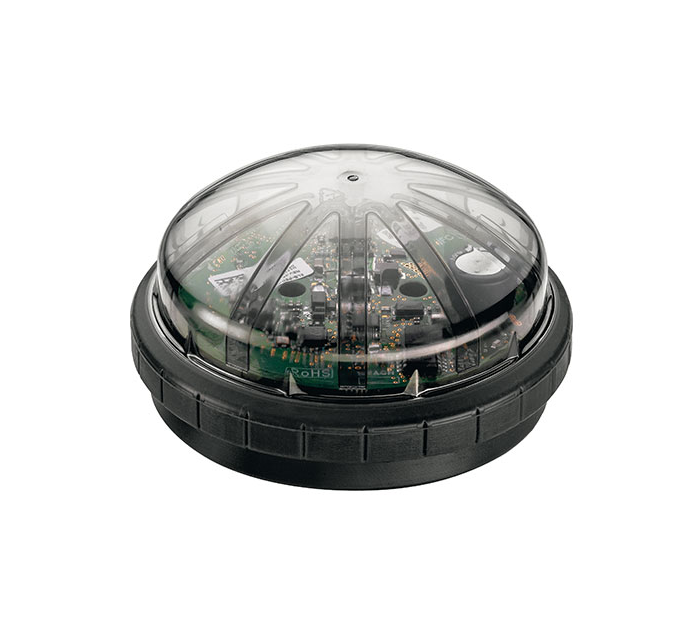

The IoT RF Node Zhaga is one of several types of wireless RF elements for the IoT Smart Urban Network. This specific type is designed for mounting on public lighting luminaires. Installation is performed through the Zhaga connector. By installing this element, the luminaire can be connected to the IoT Smart Urban Network. Once connected, the luminaire can communicate with other luminaires and can be controlled and monitored either individually or as part of a group.
